Product Description

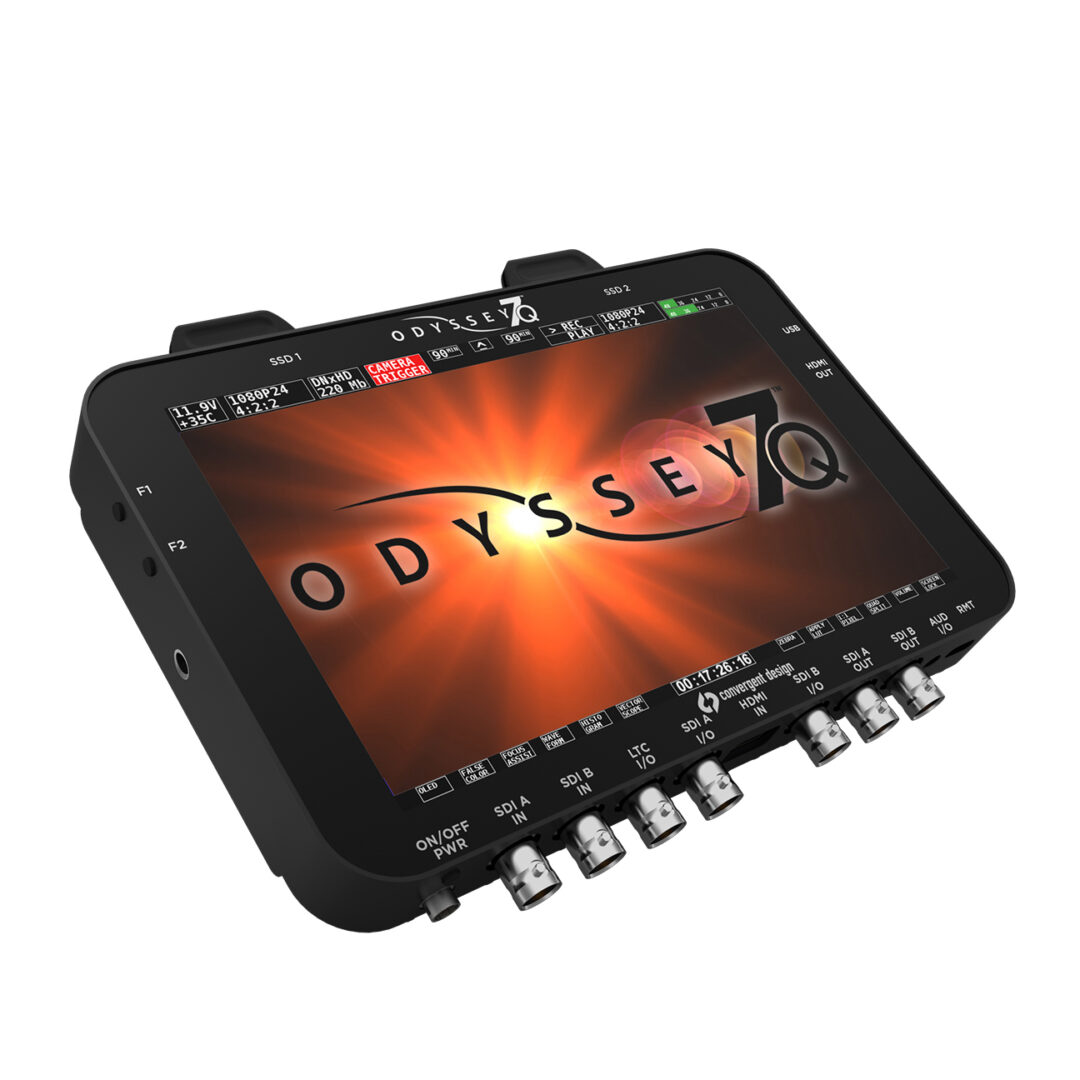

The Odyssey7Q has two SDI inputs, two outputs, and two bi-directional SDI ports. It automatically detects the incoming video format and when possible creates an entire recorder/monitor setup based on camera metadata. The bi-directional SDI ports can be assigned as either inputs or outputs via menu selection. When these are assigned as inputs, the monitor can simultaneously stream four separate 1080/30p/60i signals from a multicam setup, and you can monitor all four in a quad-split screen.

The interface is a capacitive touchscreen and simple to navigate, meaning less setup time. Most of the inputs/outputs are on the bottom, and 1/4″ mounting threads are on the sides. An AC adapter is included for continuous power, and compatible IDX, AB and Sony battery plates are available.

Camera Hire now has all available RAW Recording for Sony, Canon, Arri and Cion, included free of charge on all rentals.

Key Features

• Upgradeable to Raw & HD recorder/player
• Includes Apple ProRes 422 HQ codec supporting up to 1080p30
• 4 SDI inputs & 2 outputs or 2 inputs & 4 outputs (you get to choose via the menu)
• 2 channels of embedded audio, 48kHz, 24-bit
• Four video streams supported simultaneously
• Quad split monitoring with live switching
• Image analysis tools can be displayed large or in smaller versions in the lower right-hand corner
• Play back four separate HD video streams
• Onion skinning support (overlay of still and live video)
• Image analysis (Waveform, RGB Parade, etc.) during playback

Recorder Options

• High-speed (240fps) 2K/HD Raw recording
• 2K/HD Raw support for WeissCam, LMP, IndieCam, IO Industries
• Sony FS700 2K Raw 12-bit up to 240fps and 4K Raw 12-bit up to 60fps, both in CinemaDNG format
• HD/2K uncompressed RGB 444 up to 60fps
• HD/2K Raw up to 120 fps
• ARRIRAW (16:9) up to 60fps, (4:3) up to 48fps
• Canon Raw QHD/4K up to 60fps

Record file formats:

• HD/2K Uncompressed (.dpx)
• HD/2K Raw (.dng)
• ARRIRAW (.ari)
• Canon Raw (.rmf)

Record Triggers

• Touchscreen
• SDI record trigger (ARRI, Canon, Panasonic, Red, Sony)
• Optional remote cable

Image Analysis Tools

• Focus Assist
• YRGB Waveform
• Histogram
• False Color
• RGB Parade
• Zebras
• 1:1 and 2:1 Pixel Zoom with moveable image
• Auto flip of the image and menus using the touchscreen
• Recticule Markers
