  • 1014088.00_01

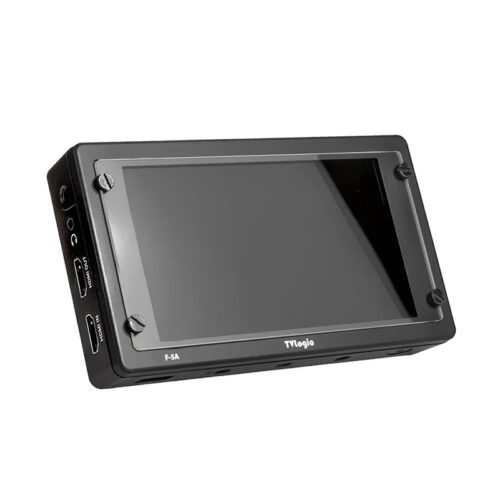

Tv Logic F-5A Field monitor

60,00 € / day

  • Two pieces available
  • The F-5A is a compact and light-weight field production monitor with Full HD resolution of 1920 x 1080, nice viewing angle and max luminance of 500nit. Equipped with a new image processing engine, F-5A reproduces even better sharpness and peaking boost capability for focus pullers. It also supports various video formats via 3G-SDI and HDMI 1.3 interface. And also support professional features such as Waveform/Vectorscope, Focus Assist, 3D LUT import, Camera Logs and HDR emulation.

Category: Monitors
  • Description
  • Reviews (0)

Product Description

Display Spec.

 Size  5.5″
 Resolution  1920 X 1080 (16:9)
 Pixel Pitch  0.0213(H) X 0.0639(V)mm
 Color Depth  16.7M
 Viewing Angle  160°(H) / 160°(V)
 Luminance  500cd/m2
 Contrast Ratio  1,000 : 1
 Display Area  122.7(H) × 69(V) mm

Input

 1 X BNC  3G-SDI Input
 1 X HDMI  HDMI Input

Output

 1 X BNC  3G-SDI Output
 1 X HDMI  HDMI Output

Input Signal

 3G SDI  2.970Gb/s
 HD SDI  1.485Gbps
 SD SDI  270Mbps
 HDMI  1080p (60/59.94/50/30/25/24/.23.98)/1080i(60/59.94/50)/720p(60/50)

SDI Input Signal Formats

 SMPTE 425M-A/B  1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
 SMPTE 296  720p (60/59.94/50)
 SMPTE 274  1080i (60/59.94/50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
 SMPTE 125  480i (59.94)
 ITU-R BT.656  576i (50)

Audio

 Audio In  Embedded Audio
 Audio Out  Analog Stereo (Phone Jack)

FPGA Functions

,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  H/V Flip,  Key Lock,  Luma(Y’) Zone Check,  Marker,  Max Brightness On/Off,  Mono,  Range Error,  Time Code Display,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom,  Camera Lut.,  Arri Camera Metadata

Closed Caption

Calibration

, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import

Other Functions

 USB   Firmware update by USB memory stick
 Ethernet
